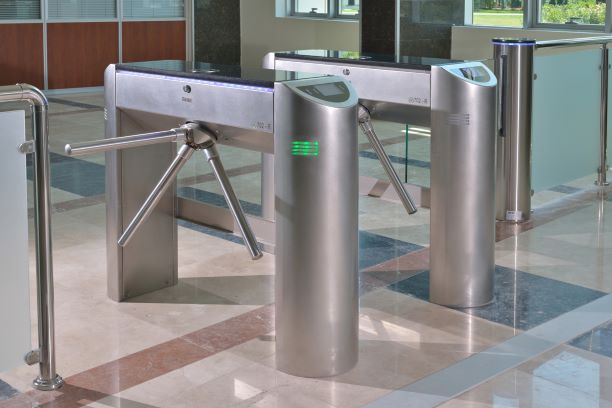

*Double leg/bridge type tripod turnstile with for locations aiming pedestrian access control and medium level security *While adding aesthetics to your locations with its rounded legs and special design indicators, it offers motor driven mechanics and automatic drop arm features as standard properties Power Requirements : 110/220V. 60/50Hz. AC (%±10) 24V. DC at standby ~11W. max. ~60W. Dimensions : 1060x1000x300 + Arm length (470 mm) Arms : Single-sided. Ø40mmx2mm 304-Grade (Opt. 316-Grade) Stainless steel (Opt. anodised hard aluminium) arms. Arms can be dismantled or mounted one by one separately. Body Features : 1,5mm 304-Grade (Opt. 316-Grade) Stainless steel brushed (Opt. Satin) surface protected against water for outdoors use. Indicator Features : Green Arrow & Red Bar LED Operating Temperature, Humidity, IP Rating, MCBF : -20°C – +68°C (Opt. -50°C with heater unit) / RH 95% non-condensing / IP 54 Outdoor Model (Opt. IP 56) / 1M Cycles Control System : All inputs are opto-coupler protected .Controlled by dry contact or grounding input. Compatible with all access control systems that provide dry contact or grounding outputs. Optional RS232/RS485/TCP IP control module is available. Operation : Bi-directional passage, manually (Opt. Motorized) operated system. Output Data : The system provides dry contact passage feedback by relays. Emergency Mode : (Standard: Fail Safe); in case of power failure or emergency, the arms rotate freely to allow rapid passage (Opt. Fail Secure). Standard Features : Direction and status indicators on top and sides.
