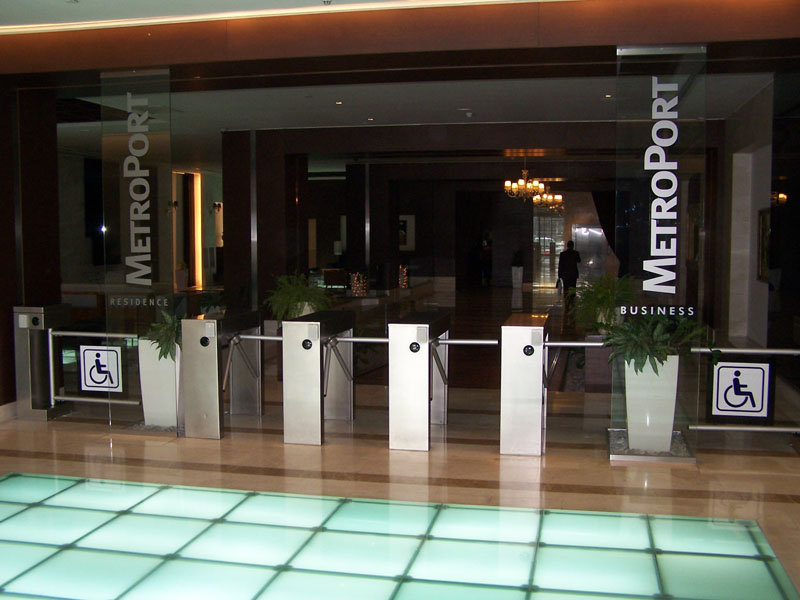

Double leg/bridge type tripod turnstile for locations aiming pedestrian access control and medium level security.

Requirements : 110/220V. 60/50Hz. AC (%±10) 24V. DC at standby ~11W. max. ~60W.

Dimensions : 1060x955x300 + Arm length (470mm)

Arms : Single-sided. Ø40mmx2mm 304-Grade (Opt. 316-Grade) Stainless steel (Opt. anodised hard aluminium). Arms can be dismantled or mounted one by one separately.

Body Features : 1,5mm 304-Grade (Opt. 316-Grade) Stainless steel with brushed (Opt. Satin) surface protected against water for outdoors use. Green Arrow & Red Bar LED Operating Temperature, Humidity, IP Rating, MCBF : -20°C to +68°C (Opt. -50°C with heater unit) RH 95% non-condensing / IP 54 Outdoor Model (Opt. IP 56) / 1M Cycles

Control System : All inputs are opto-coupler protected .Controlled by dry contact or grounding input. Compatible with all access control systems that provide dry contact or grounding outputs. Optional RS232/RS485/TCP IP control module is available. Operation : Bi-directional passage, manually (Opt. Motorized) operated system.

Output Data : The system provides dry contact passage feedback by relays.

Emergency Mode : (Standard: Fail Safe); in case of power failure or emergency, the arms rotate freely to allow rapid passage (Opt. Fail-Secure).

Flow Rate : Capacity of Mechanism (Manual System) ~90 passages/minute Nominal~25 – 46 passage-per-minute (Recommended reference figure) Standard Features : Direction and status indicators
